USCG: U-shape Self Constructing Neural Network
The U-shape self construcing graph network has two branches that subsequently downsample and upsample large images. The particular shape allows the Self Constructing Graph (SCG) layer at the bottom to fit GPU memory constraints.

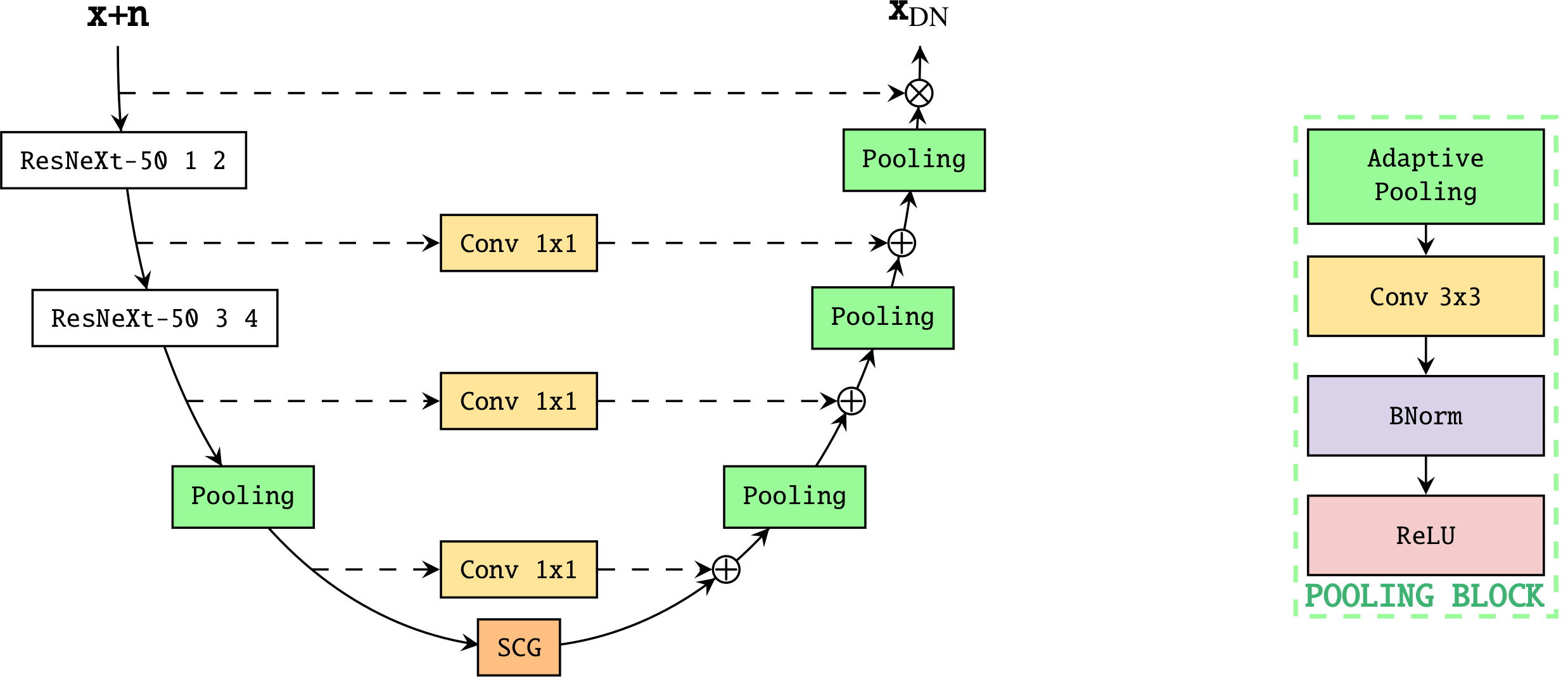

The USCG network. Noisy input images and denoised outputs are connected by two branches with residual connections. 4 layers of a pretrained ResNext-50 contribute to downsample the inputs.
The SCG layer was introduced for the first time by this paper, it allows to build a graph representation out of the input image. Each pixel has a receptive field that spans all the input ones.

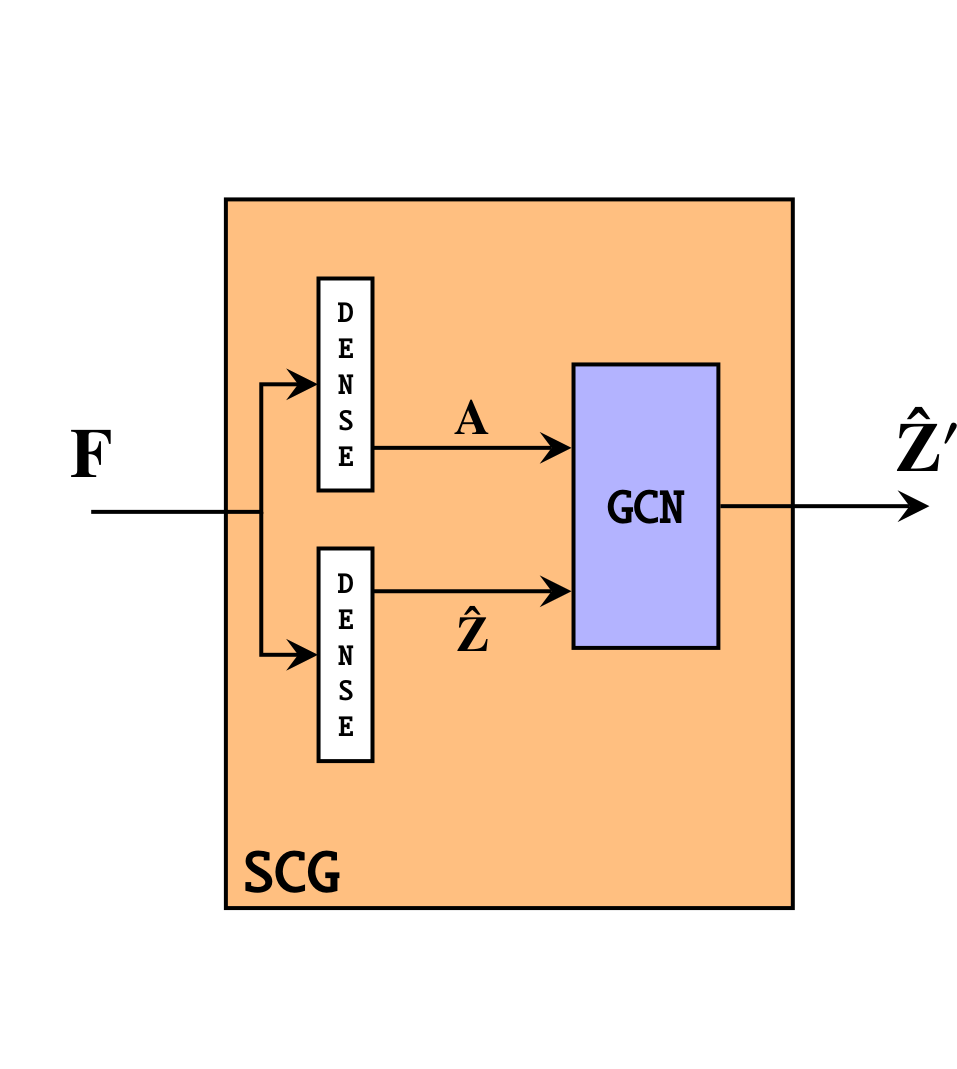

The SCG layer. First, two fully connected layers predict the adjacency matrix A and node feature vector Z respectively. Then the graph is further analyzed by a graph network like a GCN to obtain a feature vector representation for each pixel in the input.
Instantiating a USCG
High level network
The inference submodel implements classes for making inference easily on ProtoDUNE-SP simulated event in numpy format.
Internally, the class stores two networks to process induction and collection APAs, respectively.
The following snippet shows how to make inference with the DnModel:
from dunedn.utils.utils import load_runcard
from dunedn.inference.hitreco import DnModel
settings = load_runcard("<path_to_runcard>.yaml")
modeltype = "uscg"
model_setup = setup["model"][modeltype]
network = DnModel(setup, modeltype)
Note that the network object is initialized with random weights. In order to
load weights from checkpoints, pass the ckpt=<folder> kwarg to the object
constructor.
Refer to this notebook for a usage example.
Low level network
A single GCNN can also be instantiated by first loading the needed setup settings
from a runcard and then calling the load_and_compile_uscg_network function:
from dunedn.networks.uscg.training import load_and_compile_uscg_network
from dunedn.utils.utils import load_runcard
settings = load_runcard("path_to_runcard.yaml")
model_setup = setup["model"]["uscg"]
network = load_and_compile_uscg_network("collection", model_setup)
The network object is of type UscgNet.
GCNN submodule documentation is available at
